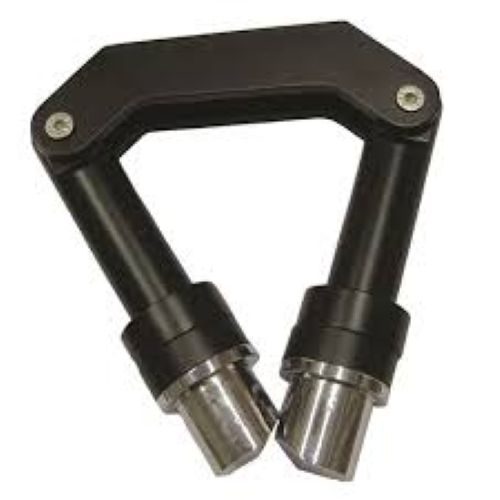

Permanent Magnetic Yoke

Name: Permanent Magnetic Yoke
Brand: Mag World NDT Systems
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Permanent Magnetic Yoke Specification

Accuracy
High sensitivity for surface breaking discontinuities

Power Supply
No power required (Permanent Magnet)

Response Time
Instantaneous upon application

Display Type
No digital display

Application
Magnetic Particle Inspection (MPI) for crack detection

Interface Type
Handheld

Resolution
Detects fine cracks (as small as 1 mm)

Humidity
Suitable for 0-95% RH

Mounting Type
Handheld portable

Temperature
0C to 50C

Automation Grade
Manual

Test Range
Surface & Sub-surface crack detection

Measuring Range
Detection of cracks up to 5 mm depth

Specimen Size
Varies as per inspection area

Features
Easy ON/OFF operation, Rugged body, Lightweight, No external power needed

Equipment Type
Permanent Magnetic Yoke

Number of Specimens
Single specimen per operation

Usage
Weld Inspection, Castings, Forgings, Maintenance checks

Capacity
Magnetic lifting capacity up to 23 kg

Machine Weight
Approx. 3 kg

Test Speed
Manual Operation

Test Width
Up to 150 mm

Control Mode
Manual

Magnet Type
Permanent AlNiCo Magnets

Maintenance
Minimal, periodic use only

Compliance
Meets ASTM E709 & IS 3703 standards

Color
Grey/Black

Surface Finish
Powder coated

Pole Spacing
Adjustable 0-150 mm

Handle Material
Ergonomically designed, insulated

Safety
Spark-free operation

Pole Shoes
Removable and replaceable

About Permanent Magnetic Yoke

Discover the noble MWPY Permanent Magnetic Yoke - a splendiferous advancement for industrial magnetic particle inspection. Its gilt-edged design is engineered with a robust, powder-coated alloy steel body and self-energized control, requiring no external power supply. This new release guarantees superior field strength (>25 mT) and corrosion resistance while efficiently detecting fine cracks and subsurface defects. With adjustable magnetic pole distance (0-200 mm), versatile AC/DC polarity, and effortless portability, it's ideal for manual flaw detection. Add to Cart now for advance purchase and elevate your inspection precision.

Comprehensive Directions and Versatile Applications

The MWPY Permanent Magnetic Yoke is tailored for both surface and sub-surface flaw detection. Use the device by placing it directly onto the test material, adjusting the yoke legs between 100 mm and 200 mm as required. Its robust build and precise operation make it suitable for a variety of industries, including automotive, railways, and steel fabrication. Its ability to operate in any orientation allows for efficient defect detection on diverse materials and specimen sizes.

Sample Availability and Export Packaging

MWPY Permanent Magnetic Yoke samples are available upon request, supporting buyers in evaluating this splendiferous tool before larger commitments. We offer secure, export-standard packaging-each yoke arrives in a dedicated carrying case with an instruction manual. With a focus on the global export market, the FOB port in India ensures timely arrival and smooth handling. Take advantage of this gilt-edged offer for qualitative industrial inspection equipment tailored to precise international needs.

Adjustable Versatility for Comprehensive Inspections

Featuring pole spacing adjustable from 0 to 150 mm and replaceable pole shoes, this yoke seamlessly accommodates a variety of specimen shapes and sizes. It enables precise placement and fosters improved crack detection accuracy-even for fine discontinuities as small as 1 mm, up to 5 mm in depth.

Reliability with Premium Performance

Manufactured with permanent AlNiCo magnets and housed in a robust, powder-coated body, this yoke offers strong, spark-free operation. The absence of electronic or power requirements ensures dependable performance even in challenging industrial environments.

User-Friendly and Ergonomic Design

The insulated, ergonomically designed handle enhances operator comfort during continuous manual inspections. Weighing approximately 3 kg, the device is lightweight and portable, making it ideal for fieldwork and routine maintenance inspections.

FAQ's of Permanent Magnetic Yoke:

Q: How does the permanent magnetic yoke detect cracks in materials?

A: The yoke generates a strong, localized magnetic field across the inspection area. When used with magnetic particles, cracks and discontinuities disrupt this field, causing the particles to accumulate at defect sites and reveal even fine surface or sub-surface flaws.

Q: What materials and applications is this yoke suitable for?

A: It is designed for magnetic particle inspection of ferromagnetic materials, often used in weld inspections, castings, forgings, and maintenance checks across industries requiring precise crack detection.

Q: When should the magnetic yoke be used during inspection routines?

A: Use this equipment during scheduled or preventive maintenance checks, especially when looking for fatigue-induced cracks, surface-breaking discontinuities, or sub-surface flaws in critical components.

Q: Where can this handheld yoke be operated safely?

A: It is safe for use in a wide range of settings thanks to its spark-free operation-whether in the workshop, field sites, or areas where electrical power is unavailable or hazardous.

Q: What is the typical inspection process using this yoke?

A: Place the yoke across the area to be inspected, adjust the pole spacing as needed, and apply magnetic particles. Inspect for visible accumulations of particles, which indicate possible cracks. The yoke's ON/OFF operation makes this process straightforward and efficient.

Q: How does this yoke benefit users compared to electrically powered yokes?

A: It does not require an external power source, ensuring portability and usability in remote or hazardous environments. Minimal maintenance, lightweight construction, and instant magnetic response make it exceptionally user-friendly.

Q: What maintenance is required for this permanent magnetic yoke?

A: Maintenance needs are minimal; periodic inspection for mechanical integrity and cleaning of the pole shoes is generally sufficient to keep the yoke in optimal working condition.
