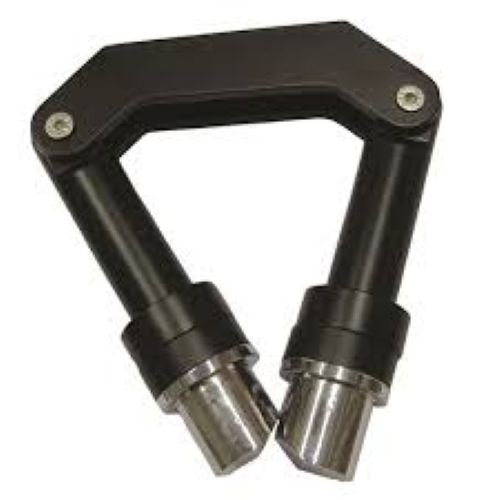

Electro Magnetic Yoke

Name: Electro Magnetic Yoke
Brand: Mag World NDT Systems
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Electro Magnetic Yoke Specification

Humidity
Up to 90% non-condensing

Operating Voltage
230V AC, 50-60 Hz or 110V AC, 50-60 Hz (model dependent)

Application
Magnetic Particle Inspection (MPI), NDT applications, surface and sub-surface crack detection

Response Time
Instantaneous on power-up

Mounting Type
Handheld

Accuracy
Ensures visible detection of cracks as small as 1 mm

Automation Grade
Manual

Temperature
0C to 50C (Operating)

Power Supply
230V AC, 50Hz (standard version)

Equipment Type
Electro Magnetic Yoke

Frequency
50-60 Hz

Test Range
Suitable for surface and subsurface crack detection

Display Type
No display (handheld device)

Specimen Size
Specimen size varies; accommodates both flat and round surfaces

Features
Portable, easy-to-use, sturdy construction, replaceable shoes

Usage
Detecting cracks, seams, laps and other discontinuities in ferromagnetic materials

Capacity
Lifting capacity up to 23 kg (approximate, depending on model)

Machine Weight
2.7 kg (approximate)

Control Mode
Manual Trigger

Cable Length
2 to 3 meters (standard)

Field Intensity at Poles
Greater than 10,000 Gauss

Current Type
AC only or AC/DC models available

Body Material
High-strength polymer housing with metallic poles

Protection Class
Class I electrical insulation

Leg Opening Distance
Varies; up to 200 mm max separation between poles (adjustable)

Yoke Pole Type
Copper alloy shoes for maximum flux transfer

Accessory Compatibility
Can use dry or wet magnetic particles

About Electro Magnetic Yoke

Experience the valorous performance of our Electro Magnetic Yoke-peerless in delivering remarkable surface and subsurface crack detection for NDT applications. With favorable reviews from industry experts, this device boasts copper alloy shoes for maximum flux transfer, a high-strength polymer housing, and an adjustable leg opening up to 200 mm. Whether AC or AC/DC, its manual trigger control ensures optimal accuracy in detecting cracks as small as 1 mm. Grab yours now at a special rate, and elevate your inspection capability to new heights.

Features and Competitive Advantages of Electro Magnetic Yoke

Portable and sturdy, this Electro Magnetic Yoke features a replaceable shoe design, instant response time, and compatibility with both dry and wet magnetic particles. Its robust copper alloy shoes guarantee superior flux transfer-remarkable for MPI applications. The yoke's versatile leg opening, ergonomic handheld design, and lifting capacity up to 23 kg make it peerless in various inspection scenarios. With Class I electrical insulation, it stands out for reliability and exceptional user safety-delivering consistent, visible detection results.

FOB Port, Packaging, and Sample Availability

Quotation for the Electro Magnetic Yoke includes standard packaging, ensuring goods are shipped securely from a major domestic market FOB port to your location. Protective packaging guards against transit damage and guarantees arrival in pristine condition. For customer satisfaction, samples may be available upon request. Shipped goods comply with stringent packaging standards, and our service team is ready to assist with any inquiries regarding sample availability or domestic shipping logistics.

FAQ's of Electro Magnetic Yoke:

Q: How does the Electro Magnetic Yoke enhance the detection process in NDT applications?

A: The yoke supplies an intense AC or AC/DC magnetic field, allowing effective identification of surface and subsurface cracks, seams, and other discontinuities in ferromagnetic materials with remarkable accuracy.

Q: What makes this Electro Magnetic Yoke different from other models?

A: It features copper alloy shoes for maximum flux transfer, an adjustable leg opening (up to 200 mm), sturdy high-strength polymer housing, and a peerless lifting capacity of up to 23 kg, distinguishing it from ordinary yokes.

Q: Where can the Electro Magnetic Yoke be used for inspection?

A: The device is suitable for use indoors or on-site for MPI and NDT inspection tasks, on flat and round test specimens, making it versatile for various industrial environments.

Q: What accessories or consumables are compatible with the yoke?

A: This model supports both dry and wet magnetic particles, catering to user preferences and inspection requirements. Replacement shoes are also available for ongoing maintenance.

Q: When is it advisable to use the AC/DC version instead of AC only?

A: Opt for the AC/DC version when both surface and deeper subsurface crack detection are required, as DC fields penetrate deeper into the material, enhancing inspection flexibility.

Q: How is the Electro Magnetic Yoke operated and maintained?

A: The yoke operates manually via a trigger mechanism. Maintenance involves regular inspection, cleaning, and replacing worn shoes to ensure peak performance and safety.
