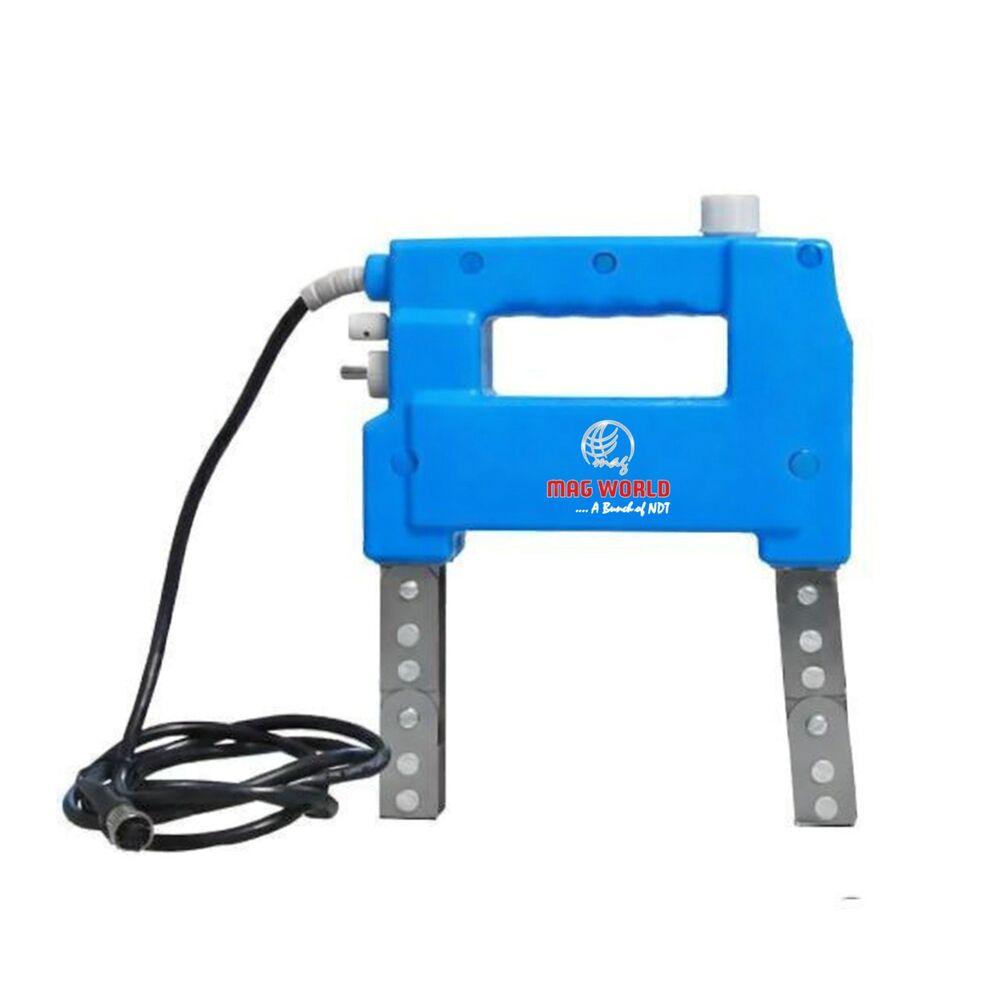

Electromagnetic Yoke

Name: Electromagnetic Yoke
Brand: Mag World NDT Systems
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Electromagnetic Yoke Specification

Frequency
50 Hz

Max Height
Up to 305 mm test length

Equipment Type
Electromagnetic Magnetic Particle Yoke

Specimen Size
Any ferromagnetic component fitting Yoke gap

Power Supply
230V AC, 50 Hz

Interface Type
Manual (non-digital)

Number of Specimens
Single specimen per test

Response Time
Instantaneous on energise

Temperature
0C to 50C

Automation Grade
Manual

Application
Magnetic particle inspection of surface/sub-surface cracks in ferromagnetic materials

Mounting Type
Handheld, portable

Display Type
No digital display

Test Range
Up to 25 mm depth detection

Operating Voltage
230V AC

Measuring Range
Detects discontinuities as small as 0.5 mm

Features
Portable, rugged construction, easy operation, replaceable cables

Accuracy
High sensitivity for fine crack detection

Humidity
Up to 90% RH

Usage
Industrial NDT inspection

Capacity
Upto 10 kg lift capability

Machine Weight
4.0 kg approx

Test Speed
Manual operation

Test Width
110 mm (Yoke pole gap)

Test Stroke
Up to 305 mm

Control Mode
Handheld

Standard Accessories
Carrying case, user manual, shoulder strap

Handle Type
Insulated ergonomic grip

Casing Material
Powder coated steel and impact resistant plastic

Polarity
Alternating Current (AC)

Pole Shoe Material
High-grade stainless steel

Magnetizing Current
Up to 2.5 Amps

Coil Type
Encapsulated AC coil

Cable Length
2 meter standard

Safety Feature
Thermal overload protection

About Electromagnetic Yoke

Select the Kingly solution for magnetic particle inspection with our Phenomenal Electromagnetic Yoke, featuring an Encapsulated AC coil for unprecedented performance. Designed with an ergonomically insulated handle and rugged, powder-coated steel casing, this must-have tool boasts up to 2.5 Amps AC, a 2-meter cable, and high-grade stainless steel pole shoes. Experience unrivaled safety with thermal overload protection and portable ease, including a carrying case and replaceable components. Detect fine discontinuities to 0.5 mm depth-grab yours now for professional-grade inspections!

Versatile Industrial Usage & Unmatched Application Scope

The Electromagnetic Yoke excels in magnetic particle inspection of both surface and sub-surface cracks in diverse ferromagnetic materials. It is a must-have for industrial Non-Destructive Testing (NDT) across heavy engineering, automotive, fabrication, and manufacturing sectors. Operated manually, it efficiently covers test specimens up to 305 mm in length and up to 10 kg, making it suitable for single ferromagnetic components in various settings requiring high sensitivity and depth accuracy.

Secure Packaging, Optimal Export Valuation & Markets

Each Electromagnetic Yoke is securely packed with a carrying case, user manual, and durable shoulder strap to ensure safe transport. Shipments are processed from India via FOB ports with flexible proposal amounts tailored to client requirements. The overall expenditure and valuation include export-worthy finish, meeting international standards. Major export destinations include Southeast Asia, the Middle East, and Africa, reflecting our sustained commitment to quality and global supply.

FAQ's of Electromagnetic Yoke:

Q: How does the Electromagnetic Yoke provide safety during industrial inspections?

A: Safety is ensured through the thermal overload protection feature, which prevents overheating during operation, while its insulated ergonomic grip further protects the user.

Q: What applications is this Electromagnetic Yoke best suited for?

A: This yoke is ideal for detecting surface and sub-surface cracks in ferromagnetic materials, commonly used in automotive, fabrication, heavy engineering, and other industrial sectors requiring precise NDT inspection.

Q: When should I use this yoke as opposed to other crack detection tools?

A: Use this yoke when high accuracy, portability, manual control, and the ability to detect tiny discontinuities (as small as 0.5 mm) are required for ferromagnetic components.

Q: Where can this device be effectively used considering environmental factors?

A: It performs reliably in environments with up to 90% humidity and a temperature range of 0C to 50C, making it adaptable for various industrial conditions.

Q: What are the benefits of using the encapsulated AC coil and stainless steel shoe design?

A: The encapsulated AC coil delivers stable magnetizing current, while the high-grade stainless steel pole shoes enhance durability and accuracy in crack detection, even for challenging surfaces.
